Every type of underground utility has specific depth requirements set by codes and best practices. Trenching to the wrong depth can result in failed inspections, unsafe installations, or damage from surface activities. Understanding depth requirements helps you plan projects and verify that work meets code.
We dig trenches to code-required depths throughout the Austin area. This guide covers depth requirements for common utility types and factors that affect how deep your trenches need to be. Our utility trenching services meet all local code requirements.
Water Line Depth Requirements
Water lines must be deep enough to protect from freezing, surface damage, and contamination. Requirements vary by jurisdiction and pipe material.
Minimum Cover
Austin and the surrounding areas typically require 18 to 24 inches of cover over water lines. Cover is measured from the top of the pipe to the finished grade. Travis County and most Williamson County jurisdictions follow similar standards. Properties in Round Rock, Cedar Park, and Georgetown follow these general requirements.
Frost Depth Considerations
Austin rarely experiences deep freezes, so frost depth is not a major factor here. The minimum cover requirements are primarily for mechanical protection rather than freeze protection. In colder climates, water lines would need to be much deeper.
Under Driveways and Roads
Water lines crossing under driveways, parking areas, or roads need additional depth or protective covering. A minimum of 24 inches is typical under light vehicle traffic. Heavy traffic areas may require 36 inches or more. Conduit or concrete protection may be required. Commercial excavation projects often have specific requirements for utilities under traffic areas.
Sewer Line Depth Requirements
Sewer depth is determined by gravity-flow requirements rather than by minimum cover specifications. The line must slope consistently from the building to the connection point.
Slope Requirements
Standard sewer slope is 1/4 inch per foot of run. This means the pipe drops 1/4 inch for every foot of horizontal distance. For a 100-foot run, the drop is 25 inches. The connection point elevation, plus the required slope, determines how deep the line must be at the building.
Building Connection Depth
The sewer leaving your building must be deep enough to serve all fixtures while maintaining slope to the connection. First-floor fixtures typically require the sewer to exit the building at a depth of 12 to 24 inches. Basement fixtures need deeper connections. Site preparation for new construction plans, utility depths based on fixture locations.
Deep Connections
When the municipal sewer connection is deep, the building sewer must go deep to reach it while maintaining slope. Some properties require sewer lines 6 to 10 feet deep or more. Deep trenches require additional safety measures and significantly increase costs.
Electrical Line Depth Requirements
Electrical burial depth depends on conduit type, voltage, and installation method. The National Electrical Code provides baseline requirements that local codes may modify.
Residential Service
Typical residential electrical service in PVC conduit requires 18 inches of cover. Direct burial cable without conduit requires 24 inches of depth. Rigid metal conduit can be installed at a shallower depth of 6 inches. Most Austin-area installations use 18- to 24-inch PVC conduit. Properties in Central Austin with older infrastructure may have varying depths.
Under Traffic Areas
Electrical work under driveways and parking areas requires a minimum of 24 inches with PVC conduit. Concrete encasement or rigid metal conduit allows shallower depth in some situations. The utility company or inspector specifies requirements for each installation.
Separation from Other Utilities
Electrical must be kept separate from water, sewer, and gas lines. Horizontal separation of 12 to 24 inches is typical. Where lines cross, specific clearance and crossing angle requirements apply. These separations affect trench routing and may require separate trenches.
Gas Line Depth Requirements
Gas lines have specific depth requirements for safety. Local gas utilities enforce strict standards.
Standard Cover
Gas lines typically require 18 to 24 inches of cover in the Austin area. The gas utility specifies requirements based on pipe material and location. Deeper cover may be required in areas with heavy traffic or special conditions. Properties in Pflugerville and East Austin follow standard Texas Gas Service requirements.
Under Paving
Gas lines under paved areas require additional depth or protective casing. A minimum of 24 inches under driveways is common. The gas utility specifies requirements and must approve installations under paving.
Marking Requirements
Gas lines require yellow warning tape placed 12 to 18 inches above the pipe. Tracer wire installed with plastic pipe enables future locating. These marking requirements apply at any depth.
Factors Affecting Required Depth
Several factors beyond code minimums influence how deep trenches should be.
Future Grade Changes
If you plan to add soil, build up areas, or change grades, utilities need additional depth to maintain cover after grade changes. Land grading and landscape changes can expose shallow utilities if not planned for during installation.
Rock Depth
When rock is encountered before reaching the required depth, options include excavating to the required depth, routing around the rock, or installing protective covering over the shallower pipes. Properties in Lakeway, Bee Cave, Westlake Hills, and Dripping Springs frequently encounter rock that affects utility depth.
Intersecting Utilities
Where new lines cross existing utilities, the depth must accommodate both the new installation and the required clearance from existing lines. Sometimes trenches must go deeper than minimum requirements to maintain separation from existing utilities.
Equipment Limitations

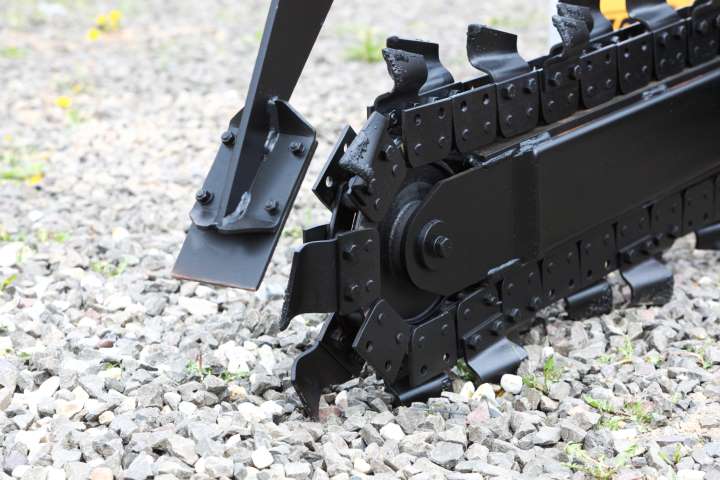

Standard trenching equipment can handle depths of about 48 inches efficiently. Deeper trenches may require excavators or special equipment. Very deep trenches require shoring for safety. Our trenching crews have equipment for all standard residential and commercial depths. Contact us at (512) 236-5135 to discuss your project requirements.
Verifying Trench Depth
Proper depth verification ensures code compliance and protects your installation.
Measure from the bottom of the trench to the existing grade, not from the pipe. The pipe diameter plus required cover determines total trench depth. For a 4-inch pipe requiring 18 inches of cover, the trench bottom should be at least 22 inches below grade. Our dirt work crews verify depth throughout trenching.
Inspectors check depth before allowing backfill. Have measuring tools available and maintain consistent depth throughout the trench. Shallow spots will require redigging. Documentation of depth at key points may be required for permits.
